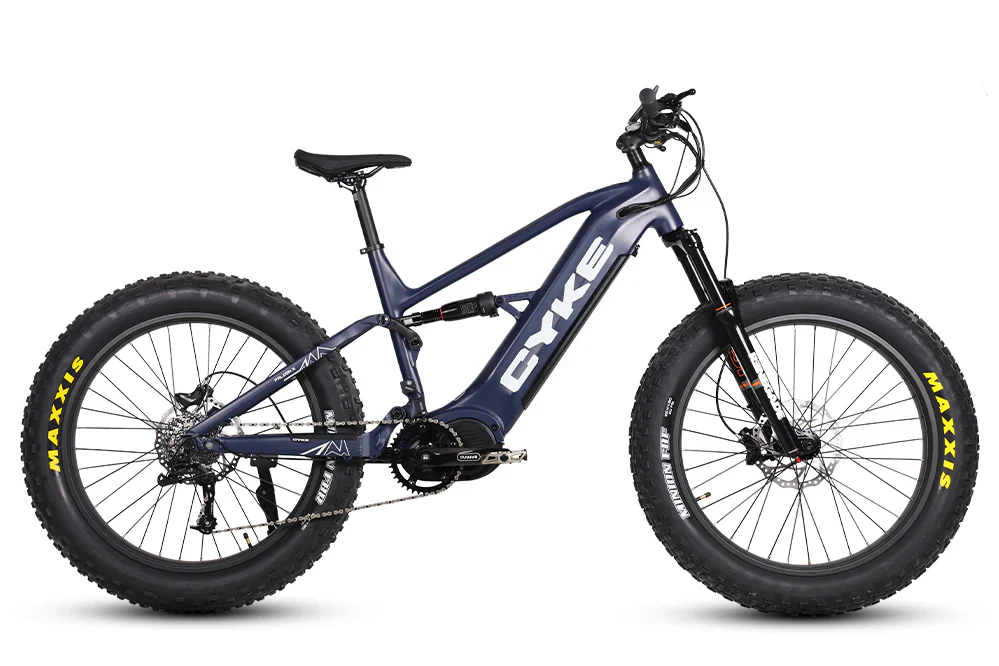

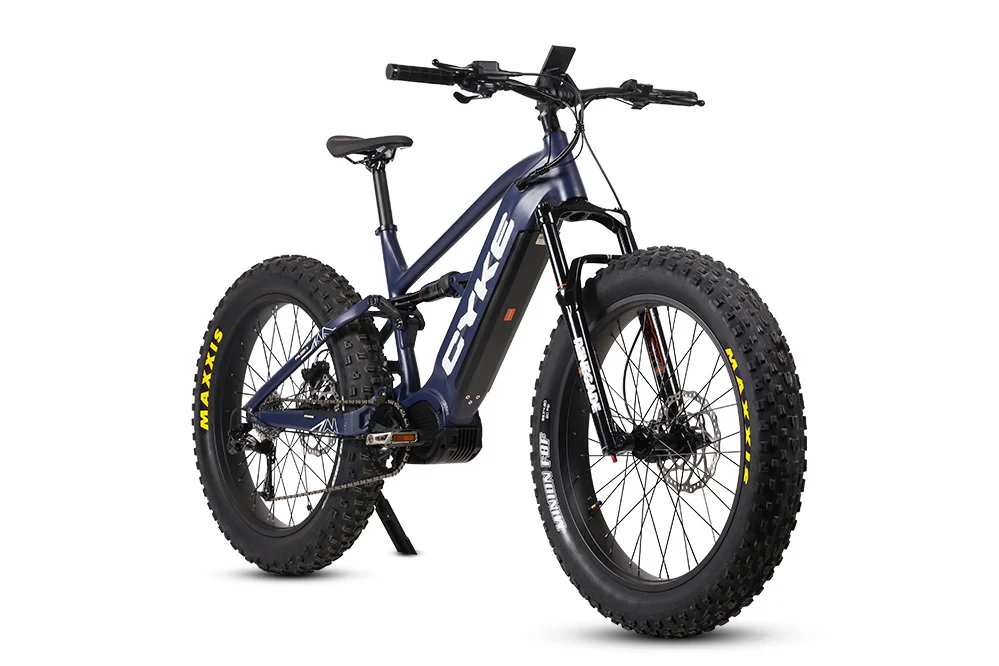

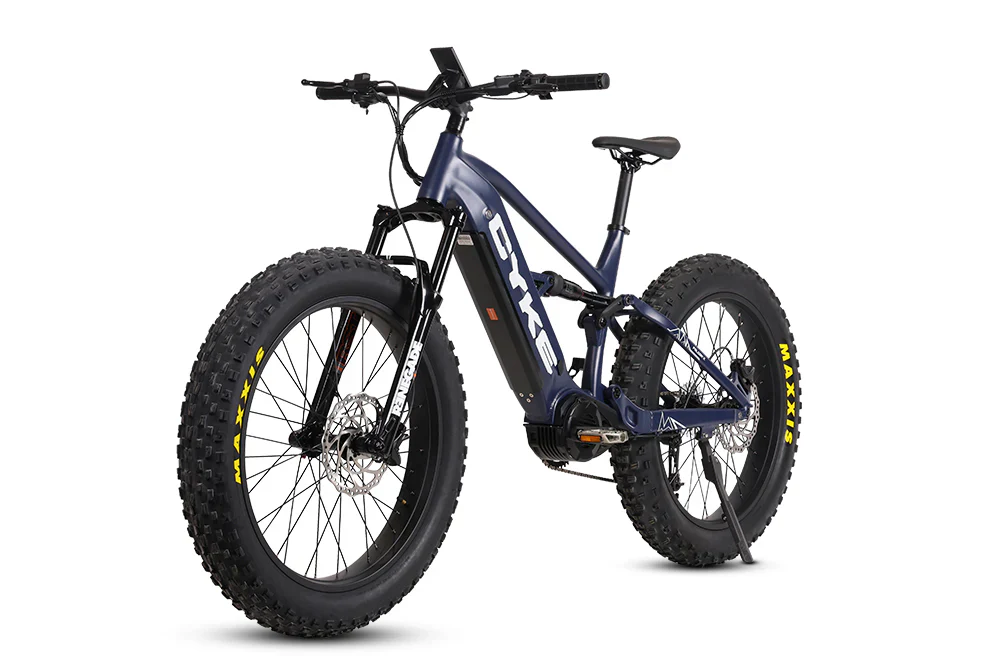

Cyke Falcon X Full Suspension Fat Tire eBike: Ultimate All-Terrain Dominator

Pro-Grade RockShox Soft-Tail Framework. Bafang 1100W Peak Mid-Drive Motor. Extreme 160 Nm Multiplier Torque & Massive Maxxis 4.8” Fat Tires.

Unleash unrelenting power across the most hostile backcountry trails with the elite engineering of the Cyke Falcon X Full Suspension Fat Tire Electric Bike. Explicitly constructed as an apex-tier off-road exploration machine, the Falcon X combines a premium RockShox soft-tail four-bar linkage architecture with a brutal, high-torque mid-drive powertrain. Whether you are blasting through deep snow drifts, crawling up steep alpine rock faces, or floating over loose sand trails, this heavy-duty tactical eBike delivers professional-grade shock absorption, maximum traction control, and an effortless, high-performance riding experience that pushes past all conventional off-road boundaries.

Industry-Leading Mid-Drive Power & Massive Torque output

Experience the absolute peak of electric bicycle propulsion with standard-setting Bafang mechanics.

• Bafang 1000W Rated Mid-Drive Motor: Dominate steep mountain inclines effortlessly. The mid-frame motor generates a massive 1100W of peak power, driving energy directly through your rear 9-speed drivetrain.

• Extreme 160 Nm Torque Vectoring: Built for raw acceleration and extreme hill climbing capability, delivering up to twice the rotational force of common hub motors to conquer any obstacle.

• Ultra-Responsive Premium Torque Sensor: Forget jerky throttle delays. The built-in torque sensor measures your actual pedaling pressure instantaneously, multiplying your leg power seamlessly across 5 levels of pedal assist (PAS).

• High-Capacity 960Wh LG Cell Battery: Explore deeper into uncharted terrain. Outfitted with a premium 48V 20Ah lithium-ion battery core packed with high-density LG 21700 cells, achieving up to a 65-mile range on a single charge.

Pro-Tier Full Suspension & Flawless Trail Handling

• RockShox Four-Bar Soft-Tail Suspension: Ride through brutal rock gardens and ruts in plush luxury. The rear chassis features a RockShox RS-Deluxe Select-C1 shock utilizing a highly tunable DebonAir+ air spring.

• RST Renegade Front Air Fork: Command tight trail tracking with an adjustable RST Renegade fork boasting premium air springs, oil damping, and a quick-acting hydraulic lockout switch for smooth hill climbing.

• Massive Maxxis Minion 4.8” Snow Tires: Maximize your tire footprint. Oversized Maxxis Minion FBF and FBR 26x4.8" fat tires act as a low-pressure pneumatic cushion that floats over snow, mud, sand, and jagged rocks.

• SRAM 9-Speed Exact Actuation™ Drivetrain: Achieve crisp, immediate shifting under heavy load. A race-ready SRAM X5 9-speed shifter and rear derailleur manage your gear ratios with flawless precision.

Precision Safety Hardware & Smart Cockpit Controls

• Tektro 4-Piston Hydraulic Disc Brakes: Control your descent with extreme confidence. Tektro HD-E730 hydraulic calipers clamp down on massive, heavy-duty 203mm rotors, featuring automatic motor power cut-off sensors for lightning-fast stopping.

• 4” TFT Color Bluetooth Display: Keep vital trail metrics in your direct line of sight. The premium IP66 waterproof color display features seamless smart integration and exceptional legibility under direct sunlight.

• High-Strength Aluminum Frame: Crafted from aerospace-grade aluminum alloy, supporting total rider and gear weight limits up to 300 lbs while maintaining strict tracking alignment.

⚡ 100% Online Financing Available

Ready to claim the ultimate crown of all-terrain trail performance without paying the full balance upfront? We partner with leading consumer financing networks to bring you 100% online financing options directly at checkout. Enjoy instant credit approvals, secure processing, and flexible monthly payment plans that fit your lifestyle budget perfectly. Complete your application in seconds and bring home the pinnacle of electric bikes today!

Cyke Falcon X Technical Specifications

Category	Detailed Specifications & Dimensions
Motor System	Bafang Mid-Drive, 1000W Rated, 1100W Peak Power (CAN6.3 Protocol)
Torque Profile	Unmatched 160 Nm of Rotational Torque for Ultimate Climbing
Maximum Velocity	Up to 28 MPH (45 km/h) via both Pedal-Assist and Hand Throttle
Battery Infrastructure	48V 20Ah (960Wh) Lithium-ion with Premium LG 21700 Cells
Single-Charge Range	Up to 65 Miles (Tested with 75kg load on flat terrain in PAS 1)
Drive Sensor Type	Advanced Integrated Dynamic Torque Sensor
Pedal Assist Layout	5 Progressive Levels of Intuitive Power Management
Rear Shock Unit	RockShox RS-Deluxe Select-C1 (190x45mm) with DebonAir+ Air Spring
Front Fork Unit	RST Renegade 26 Air Fork, 80-120mm Travel with Hydraulic Lockout
Braking Componentry	Tektro HD-E730 4-Piston Hydraulic Disc Brakes with Safety Cut-offs
Brake Rotor Size	High-Heat Dissipating 203mm x 2mm 3T Rotors
Rear Derailleur Suite	SRAM RD-X5 9-Speed with EXACT ACTUATION™ Technology
Shifter Suite	SRAM SL-X5 9-Speed High-Precision Trigger Shifter
Cassette Specs	SRAM CS-PG-950 9-Speed Gear Stack
Front/Rear Tires	Maxxis Minion FBF & FBR 26″ x 4.8″ High-Volume Fat Tires
Cockpit Display	4-Inch TFT Color LCD Screen with Smart Bluetooth Connectivity (IP66)
Chassis Framework	Premium High-Strength Aluminum Alloy (Available in 17″ / 19″ Sizes)
Drivetrain Chain	KMC E10S Heavy-Duty E-Bike Specific Chain
Charging Metrics	3.0A High-Current Smart Charger (Approx. 8-10 Hours Charge Time)
Rider Capacity Limits	Rugged Structural Framework Supports Weights Up to 300 lbs
Vehicle Net Weight	Massive, Grounded 82.7 lbs (105.2 lbs Gross Boxed Weight)

Frequently Asked Questions

Why is a mid-drive motor significantly better for steep off-road trails than a hub motor?

A hub motor spins the wheel directly, independent of your gears, meaning it can quickly bog down, overheat, or lose power on steep mountain inclines. The Falcon X features a Bafang mid-drive motor positioned right in the center of the frame. This allows the motor to utilize the bike's 9-speed SRAM drivetrain like a transmission. When climbing steep hills, shifting into a lower gear multiplies the motor’s 160 Nm of torque mechanically, letting you crawl up severe mountain trails without stalling or overheating the electric core.

How does the combination of an RST Renegade fork and a RockShox rear shock impact handling?

Rigid bikes bounce uncontrollably off rocks and roots, causing tires to lose contact with the trail and making steering dangerous. The Falcon X uses a premium four-bar soft-tail full suspension system. The RST Renegade front air fork tracks through ruts smoothly, while the RockShox RS-Deluxe Select-C1 rear shock uses specialized DebonAir+ air springs and Maxima Plush lubricants to absorb hard drops. This keeps your 4.8" Maxxis tires firmly planted against the ground, ensuring maximum traction, better braking control, and a plush ride over any terrain.

What are the real-world advantages of Maxxis 26x4.8” fat tires?

Standard mountain bike tires slice directly into mud, loose sand, and fresh snow, causing the bike to sink and lose momentum instantly. Maxxis Minion 4.8” fat tires are extra-wide, allowing you to run them at a much lower tire pressure (PSI). This widens the tire's footprint across the ground, allowing the eBike to float on top of unpredictable terrain like a snowmobile. The aggressive Minion tread blocks claw into loose soil, sand, and ice for unmatched off-road control.

How do 4-piston hydraulic brakes perform differently from standard mechanical brakes?

Standard mechanical brakes rely on a single steel cable that can stretch over time, pushing a single brake pad against the wheel rotor. The Tektro HD-E730 system uses a sealed hydraulic fluid line to actuate 4 separate pistons inside the caliper simultaneously. This clamps the massive 203mm rotors evenly from both sides, providing immense, effortless stopping power with a soft pull of the brake lever. The built-in power cut-off sensors cut electricity to the 1000W motor the instant you squeeze the lever, ensuring fast and safe stops under any trail conditions.
