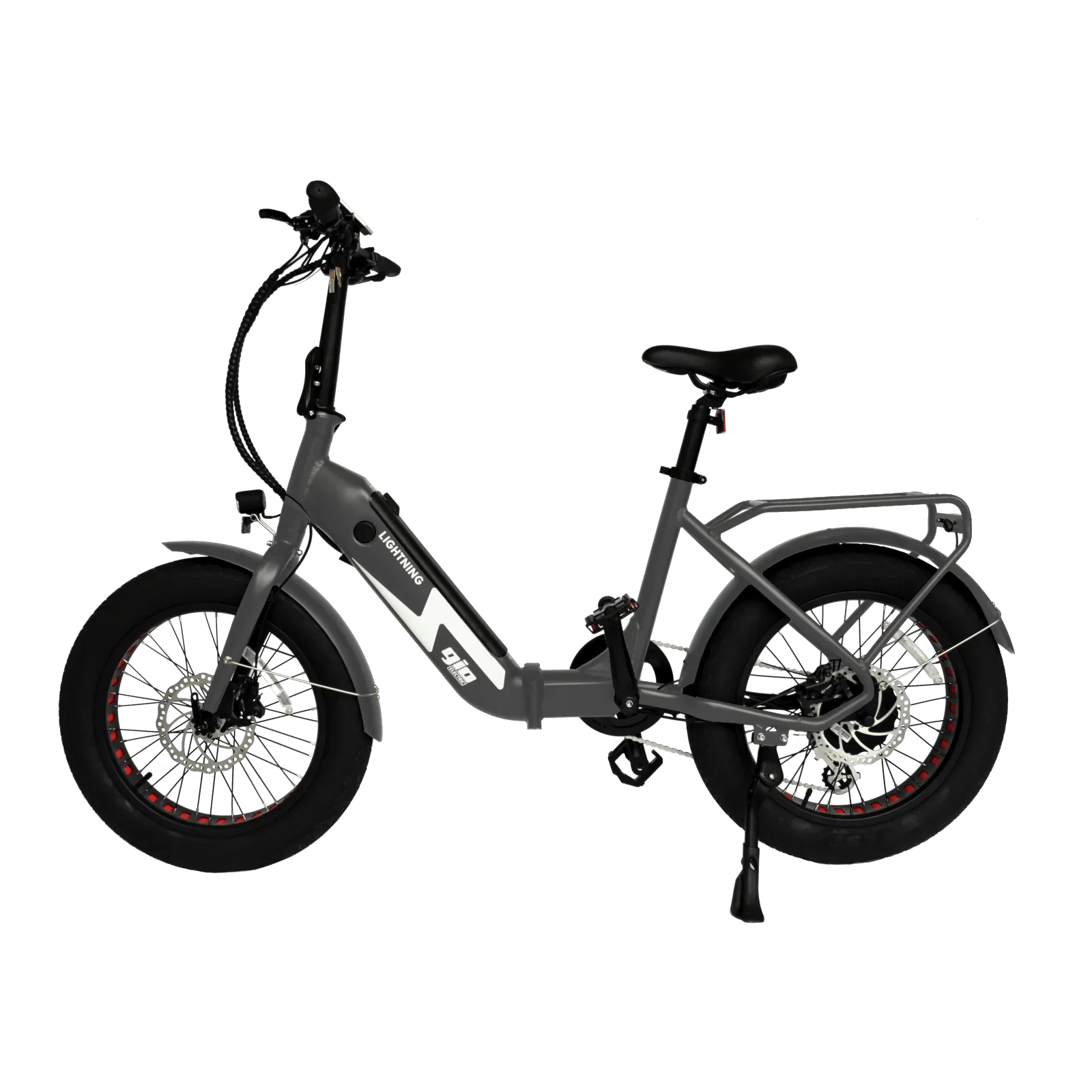

GIO Lightning Folding Fat Tire Electric Bike: Big Style, Little Footprint

Compact Portability. Heavy-Duty All-Terrain Power. 20 MPH Top Speed & 30-Mile Range.

Travel in style and go precisely where a full-sized e-bike cannot. The GIO Lightning Folding Fat Tire Electric Bike packs premium, high-end power into a highly portable, compact package. Built around a sleek, modern body and accented by rugged fat tires, this 100% electric ride delivers an exceptionally smooth, near-silent operation with zero carbon emissions. Whether you are tight on storage space at home, packing for a weekend road trip, or looking to bypass crowded transit, the Lightning provides the ultimate ticket to commuter independence.

Space-Saving Portability & High-End Safety

Designed for riders who refuse to compromise on rugged performance or storage flexibility.

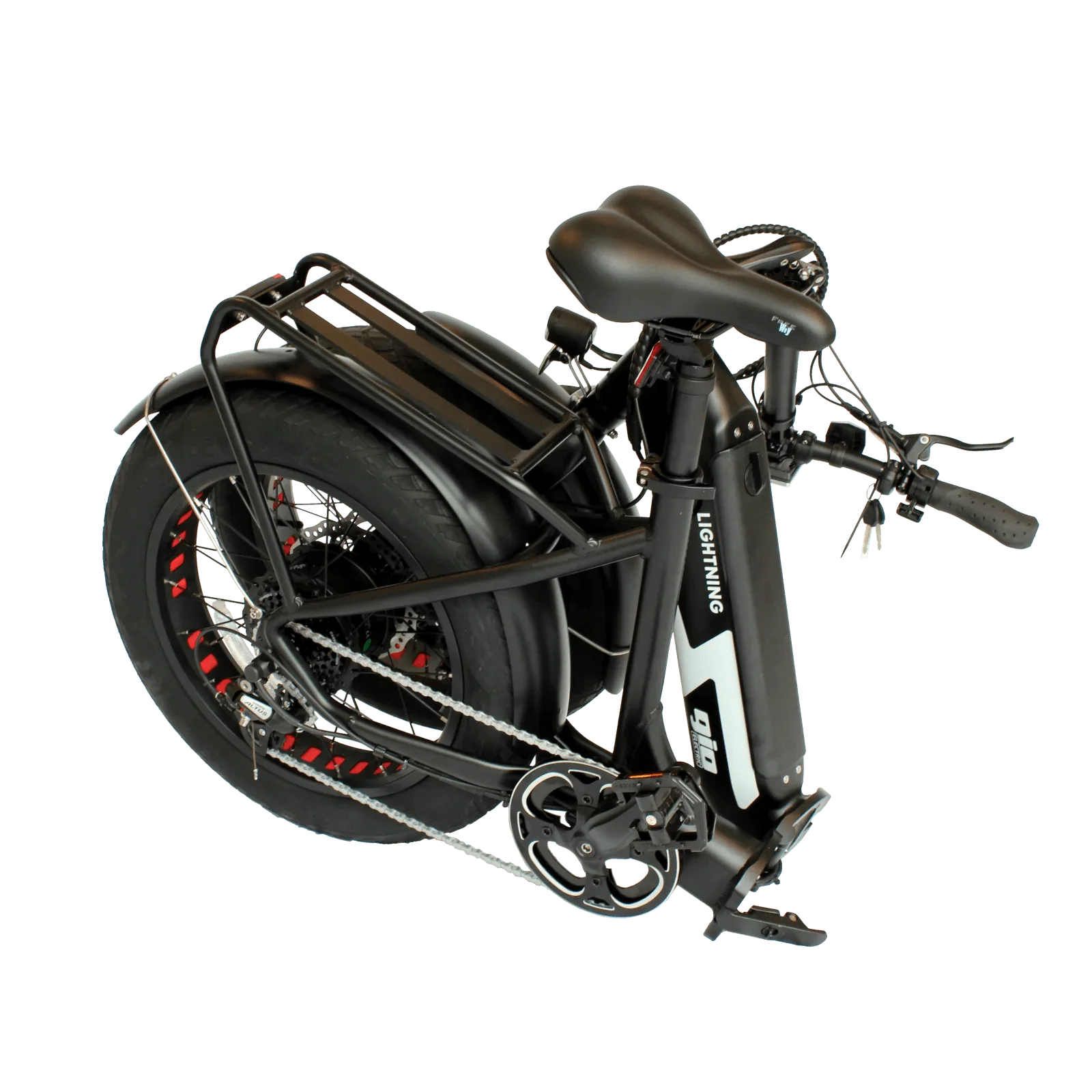

• Quick-Fold Frame Architecture: Equipped with industrial quick-release latches positioned directly on the handlebars and a heavy-duty frame hinge. It drops from a full operational stance down to a compact footprint in just a few seconds for seamless storage in car trunks, closets, or office spaces.

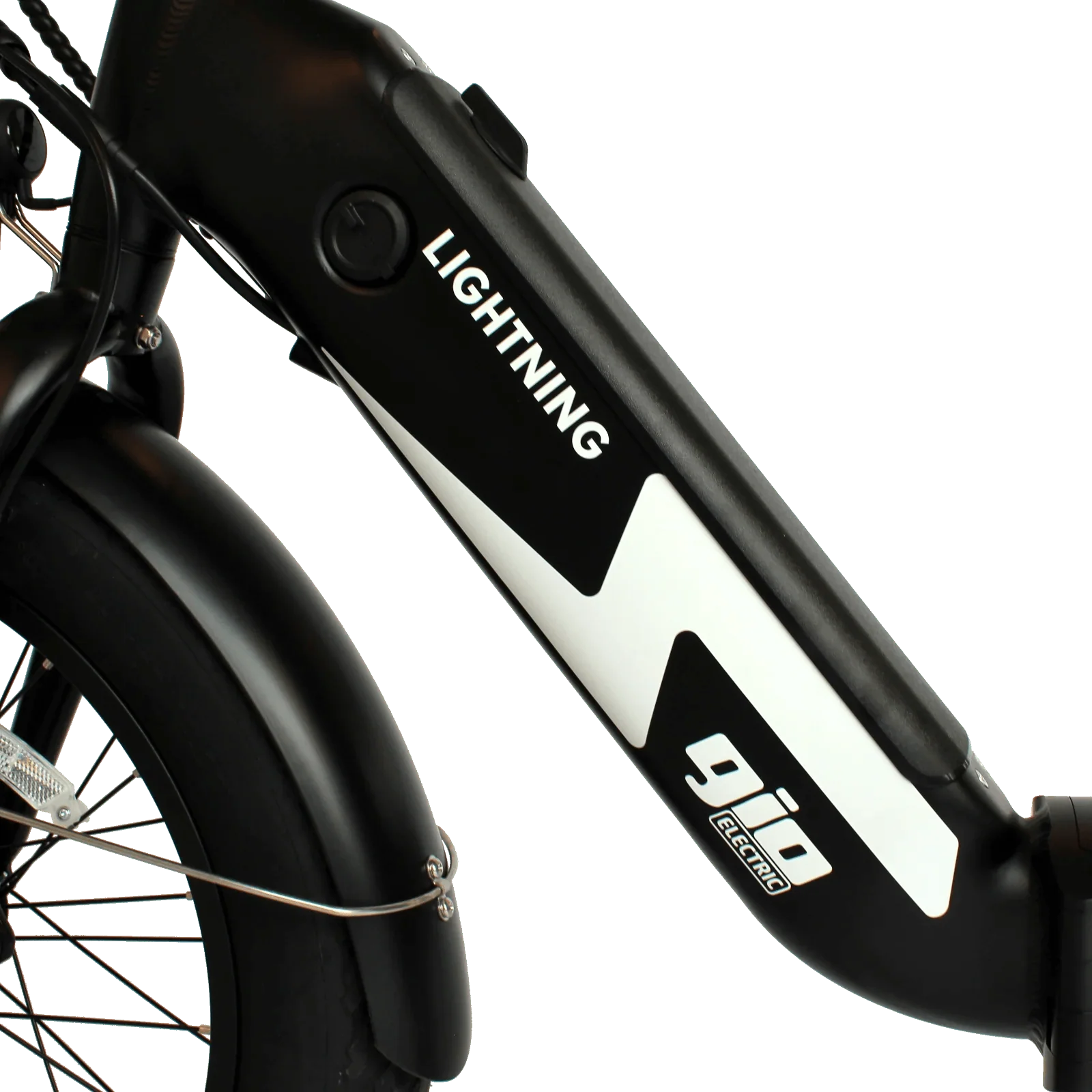

• Sleek Integrated Battery Protection: The high-capacity lithium core is nested entirely inside the main down tube. This integrated layout safeguards the vital battery cells from outdoor elements and dirt while maintaining clean, modern frame lines.

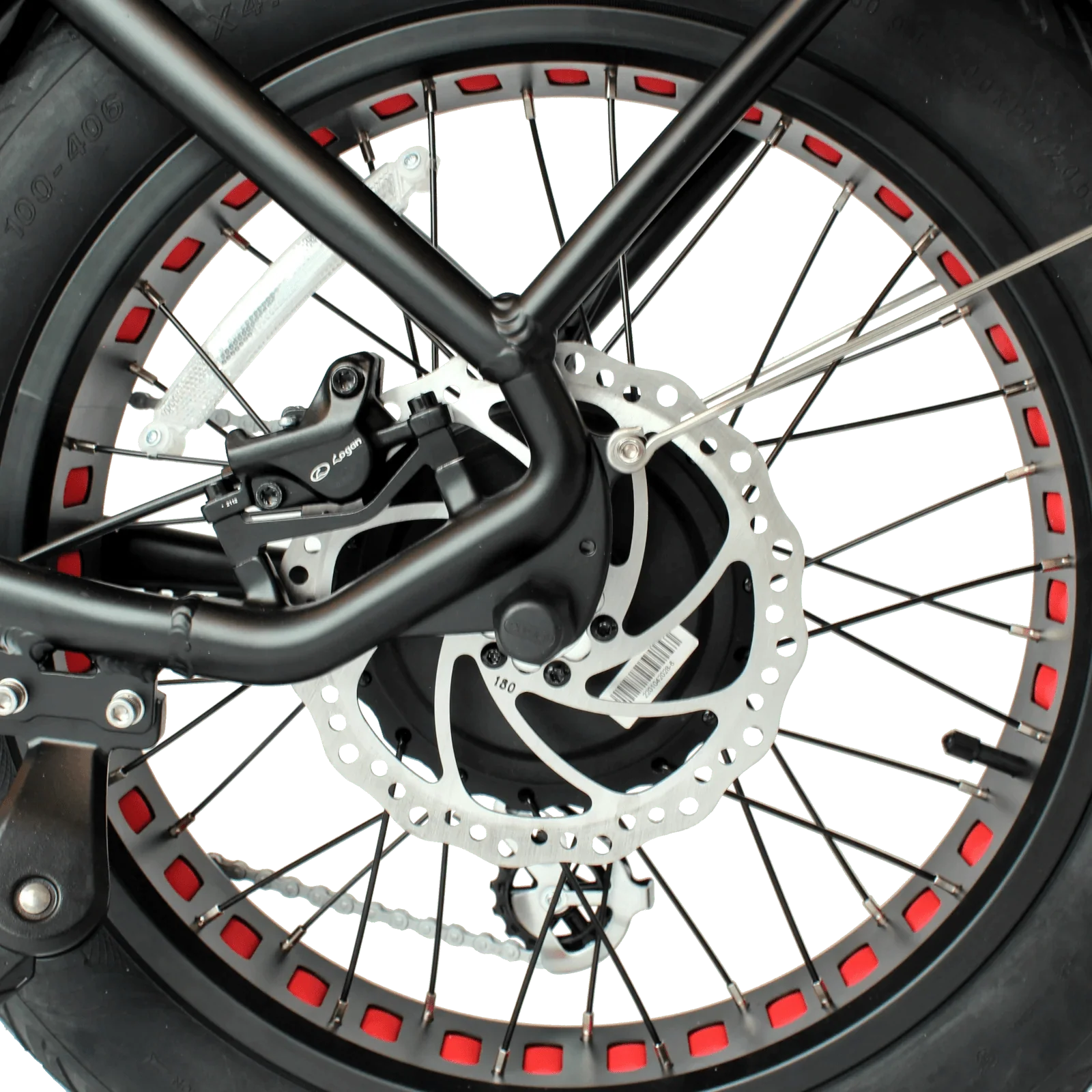

• All-Weather Stopping Muscle: Features premium hydraulic disc brakes paired with massive 180mm brake rotors. Engineered with an automatic safety motor cut-out function, the system immediately cuts power transmission to the rear hub the moment you squeeze the brake levers.

• Integrated Safety Lighting: Stand out during late-evening city commutes or gloomy weather conditions with a high-visibility, bright rear LED stoplight powered directly by the main battery core.

BAFANG Engineered Powertrain Performance

• 80Nm High-Torque Rear Hub Motor: Driven by a world-class BAFANG 48V 500W brushless geared hub motor (capable of ramping up to a maximum 100Nm peak torque). This premium powertrain effortlessly masterminds steep hill climbs, head-winds, and loose off-road terrain.

• Shimano Altus 8-Speed Drivetrain: Pair your electric assist with traditional mechanical precision. A genuine Shimano Altus 8-speed derailleur and crisp 11-32T cassette give you optimal mechanical advantages across rolling hills or flat pavement.

• CST Professional Fat Tires: Rolls over potholes, sand, loose gravel, and mud on ultra-wide 20" x 4.0" CST professional fat tires. The high-volume air cushion absorbs rough road vibrations, doubling as a natural suspension system.

• Dual-Mode Riding Autonomy: Seamlessly toggle between energy-saving pedal assist via the built-in speed cadence sensor or twist the on-demand grip throttle for immediate, effortless acceleration up to 20 MPH.

⚡ 100% Online Financing Available

Ready to claim your freedom without paying everything up front? We provide flexible consumer financing options directly at checkout, offering instant credit decisions and manageable monthly installment payments. Upgrade your ride today!

GIO Lightning Technical Specifications

Category	Detailed Specifications & Dimensions
Motor System	BAFANG 48V / 500W Geared Brushless Rear Hub Motor
Torque Rating	80Nm Nominal Working Torque (100Nm Maximum Peak Output)
Battery Pack	Fully Integrated 48V 12Ah Lithium-Ion Cell Core
Maximum Velocity	Up to 20 MPH (32 km/h)
Estimated Range	Up to 30 Miles (50 km) Per Full Charge
Braking System	Hydraulic WuXing Auriga Disc Brakes with Automatic Cut-Out
Brake Rotor Size	Heavy-Duty 180mm Front & Rear Steel Rotors
Drivetrain	Premium Shimano Altus 8-Speed Derailleur System
Gear Cassette	8-Speed 11-32T Performance Cluster
Crankset Setup	44T Chainring with 170mm Prowheel Aluminum Alloy Arms
Wheel & Tire Setup	20" x 4.0" CST Professional All-Terrain Fat Tires
Frame Material	Rigid Aircraft-Grade 6061 Aluminum Alloy
Front Fork	High-Tensile (Hi-Ten) Rigid Steel, 20" Profile
System Controller	High-Efficiency 9-Mosfet 48V 20Amp Smart Controller

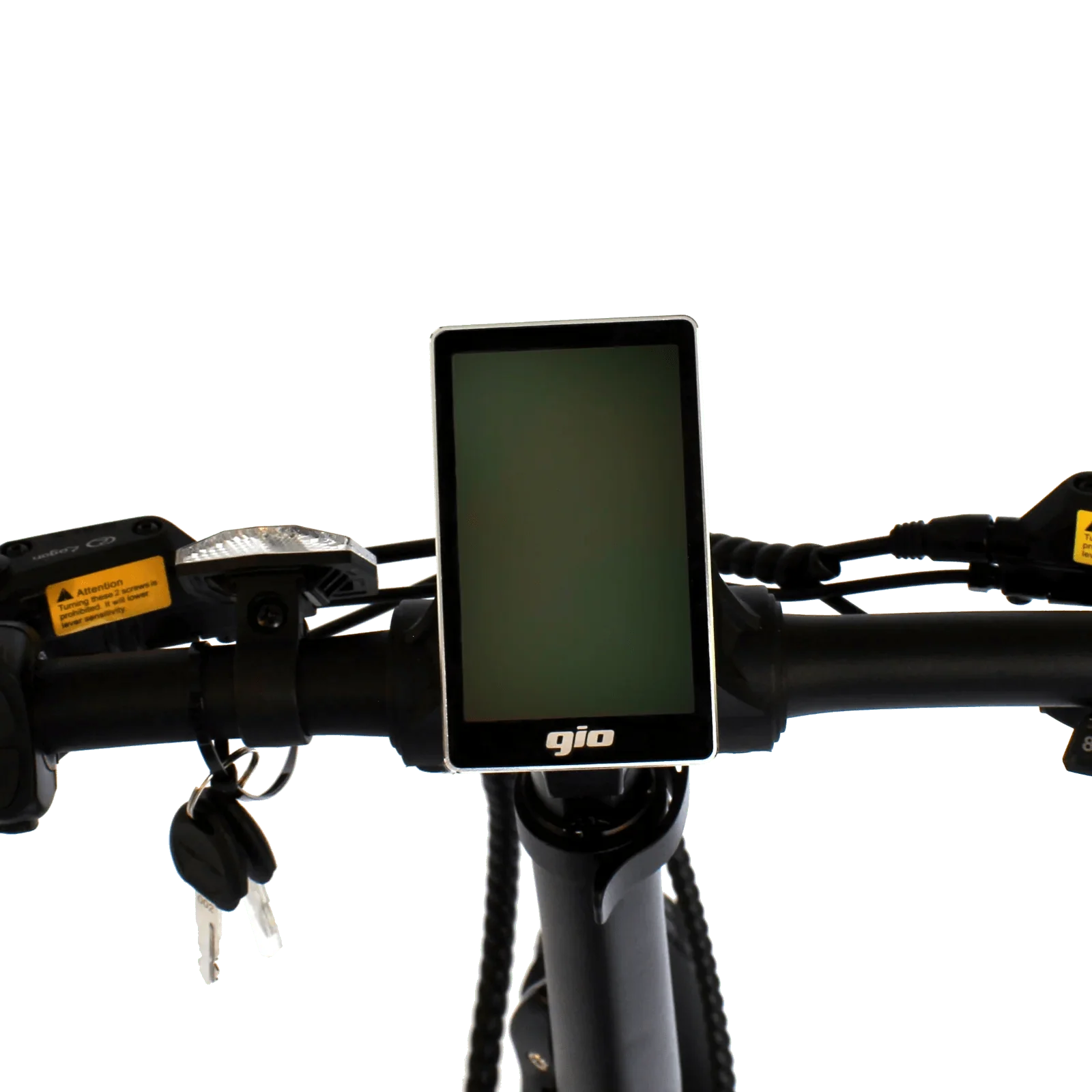

Dashboard Interface	Multifunctional Backlit LCD Screen (Toggleable Miles or KM)
Throttle Hardware	On-Demand Variable Twist or Push Grip Throttle Assembly
Sensor Technology	Integrated Performance Cadence Speed Sensor
Vehicle Total Weight	62 lbs (28 kg) Balanced Operating Weight
Battery Weight	7 lbs (3 kg) Removable Component Weight
Full Dimensions	69" L x 44" H (175 cm x 112 cm)
Folded Dimensions	36" L x 27.5" W x 19.5" H (91 cm x 70 cm x 49 cm)

Frequently Asked Questions

Do I need a specialized toolset to fold or unfold the e-bike frame?

Not at all. The GIO Lightning features entirely tool-free, heavy-duty quick-release latches built right onto the main frame hinge and the handlebar stem. These mechanical latches fold down or lock open securely using manual lever tension. You can transform the bike from fully extended to its tight, folded footprint in under 15 seconds without a single tool.

What are the main benefits of hydraulic disc brakes over mechanical cable brakes?

Hydraulic disc brakes utilize sealed fluid lines rather than traditional steel cables to compress the brake pads. This offers a massive step up in performance: it requires significantly less physical hand pressure on the levers to achieve immediate stopping force, eliminates cable stretching or regular cable tension adjustments, and provides uniform, predictable performance even in wet, muddy, or rainy outdoor conditions.

Can the integrated battery pack be locked inside the frame? Is it removable?

Yes, the battery pack is fully integrated into the core frame channel to shield it from weather elements, theft, and physical impacts. It locks securely into place inside the down tube using a dedicated key mechanism, so no one can remove it while parked in public. When unlocked, it can be easily taken out for convenient indoor charging or left inside the frame to charge.

Does the on-demand throttle work without pedaling, or must I pedal constantly?

The GIO Lightning features complete riding autonomy. It includes a variable twist/push grip throttle that allows you to cruise entirely on electric power without moving your feet. If you prefer to pedal, the intelligent cadence speed sensor automatically detects your pedaling motion and kicks in the BAFANG motor to assist your effort across your choice of 8 manual gear speeds.

Estimated shipping and delivery is 3-10 business days if the product is in stock.

GIO has a 30-day return warranty. You can view the return details by clicking here.
