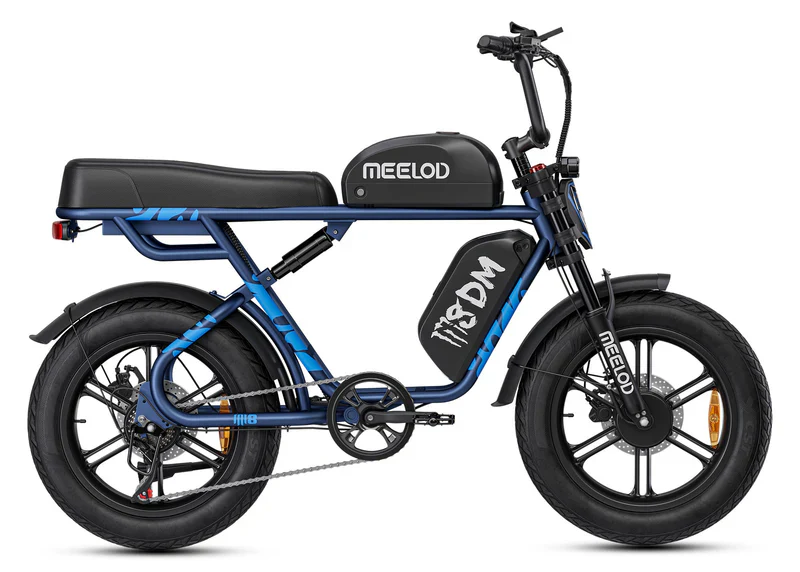

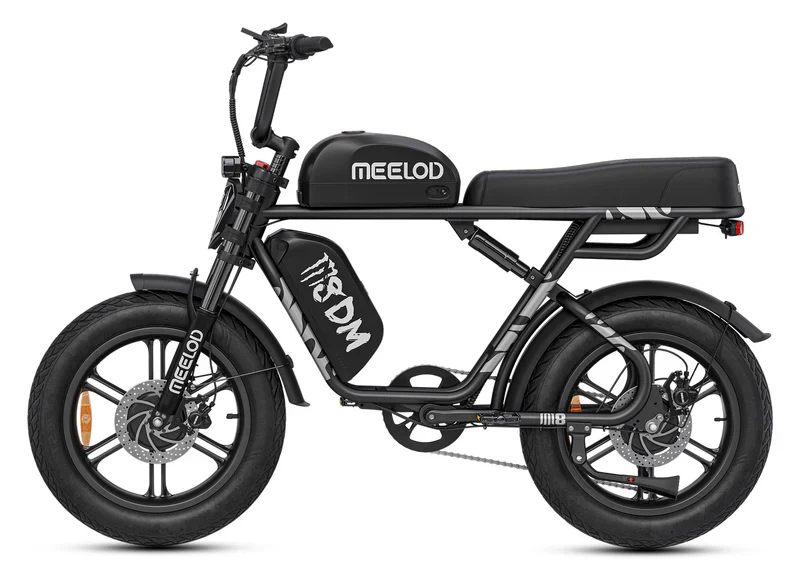

MEELOD M8DM Fat Tire Electric Bike: Built for Limitless Adventure

Dual-Motor Performance Engine. Removable 32Ah Dual-Battery System. 40 MPH Max Velocity & Up to 150 Miles of Range.

Command all surfaces with the aggressive, unstoppable power of the MEELOD M8DM Fat Tire Electric Bike. Engineered for heavy-duty trail blazing, off-road exploration, and ultra-long-distance city commuting, this high-performance machine sets a new standard for electric mobility. Combining an extended double seat with massive power delivery, the M8DM gives you a self-developed, high-quality alternative to premium-priced mountain e-bikes without cutting a single corner on raw capability, rider safety, or rugged comfort.

Boundless Range & Motorcycle-Grade Comfort

Leave range anxiety and rigid boundaries behind on a chassis built for two.

• Extended Double Passenger Seat: Formed with high-elastic premium foam, the elongated cruiser saddle comfortably accommodates a passenger or extra gear while providing exceptional cushioning on long journeys.

• 48V 32Ah Dual-Battery System: Power your ride with two high-capacity, removable 48V 15.6Ah batteries linked together. This advanced setup delivers an incredible range of up to 150 miles and lets you swap or charge the packs anytime, anywhere.

• Impact-Absorbing Full Suspension: Float seamlessly over challenging trails. The dual-suspension network pairs a front adjustable hydraulic suspension fork with a rear air shock absorber, working together to maintain constant tire contact and total control.

• Vibrant 3.5-Inch LCD Color Display: Track your performance at a glance through a weather-resistant, crisp color screen. The display features intuitive controls and high contrast, making your speed, battery indicators, and assist modes perfectly readable even in direct sunlight.

Dual-Motor Performance & Extreme Traction

• 2400W Peak Dual-Motor Drivetrain: Driven by a high-torque dual hub motor setup (1500W nominal, 2400W max peak) that delivers a jaw-dropping 160Nm of maximum torque. This dual-traction layout gives you incredible climbing capabilities and fast acceleration up to 40 MPH.

• Puncture-Proof 4.0" Fat Tires: Conquer soft sand, deep snow, loose mud, and rugged gravel tracks. Wide 20" x 4.0" anti-puncture fat tires feature deep tread patterns and reinforced internal layers for premium stability and an unshakeable grip.

• Heavy-Duty Hydraulic Disc Brakes: Control your velocity with absolute precision. High-performance hydraulic disc brakes provide prompt, low-effort stopping power in wet or dry environments, backed by an integrated electronic motor cut-out safety feature.

• Vanguard Safety Lighting: See and be seen during dark trail loops or late-night urban routes. Outfitted with an ultra-bright, high-power 48V LED headlight alongside an integrated rear safety tail-light.

⚡ 100% Online Financing Available

Ready to upgrade your adventures without paying the full balance upfront? We partner with leading consumer financing networks to bring you 100% online financing options directly at checkout. Enjoy instant credit decisions, secure processing, and flexible monthly installment plans that fit your budget. Complete your application in seconds and bring home the MEELOD M8DM today!

MEELOD M8DM Technical Specifications

Category	Detailed Specifications & Dimensions
Motor Drive	2400W Maximum Peak Output (1500W Nominal) Dual Hub Motors
Torque Rating	Heavy-Duty 160 N·M Maximum Working Torque
Battery Configuration	48V 32Ah Total Capacity (Dual 15.6Ah Removable Lithium Packs)
Maximum Velocity	Up to 40 MPH (64 km/h)
Riding Range	55 to 100 Miles
Braking Hardware	High-Precision Front & Rear Hydraulic Disc Brakes
Suspension Layout	Adjustable Hydraulic Front Fork + Central Rear Air Shock Absorber
Drivetrain Gears	Shimano 7-Speed Rear Derailleur System
Wheel & Tire Setup	20" x 4.0" CST Anti-Puncture All-Terrain Fat Tires
Frame Material	High-Tensile Heavy-Duty Carbon Steel Frame
Dashboard Interface	3.5-Inch Weather-Resistant LCD Color Display (IP67 Rated)
Throttle Assembly	Variable Twist Grips
Lighting Hardware	High-Lumen 48V LED Headlight + Integrated Rear Tail Light
Payload Capacity	Heavy-Duty 440 lbs (200 kg) Maximum Load Rating
Charging Duration	Fully charges from empty in approximately 7 to 8 Hours

Frequently Asked Questions

What are the main benefits of a dual-motor setup compared to a single rear motor?

A single-motor e-bike can sometimes struggle on loose terrain or steep inclines because all the pushing force is concentrated on one wheel. The MEELOD M8DM utilizes front and rear hub motors to distribute power to both wheels simultaneously. This creates a true all-wheel-drive system that delivers twice the traction on sand, snow, or mud, decreases the risk of wheel spin, and provides immediate, balanced torque (up to 160 N·M) to pull heavy loads up steep mountain inclines without bogging down.

How does the dual-battery management system handle charging and range?

The M8DM includes two independent 48V 15.6Ah lithium battery packs that function together seamlessly to eliminate range anxiety. Both batteries are fully removable and lock securely to the frame with a key, allowing you to charge them while mounted to the bike or remove them to charge inside your home or office. By splitting the energy load, the cells generate less heat during high-speed 40 MPH cruising, extending the overall longevity of your battery system.

Is a carbon steel frame better for this style of e-bike than aluminum?

While aluminum frames are prized for lightweight urban commuter bikes, carbon steel is the ideal material for high-payload, high-torque dual-motor cargo and trail e-bikes. Carbon steel possesses superior tensile strength, high fatigue resistance, and natural vibration-damping qualities. This allows the M8DM frame to easily handle the high twisting forces of a 2400W dual-motor system, hold up to a massive 440 lbs weight capacity, and absorb harsh trail impacts without structural stress.

Can the extended seat comfortably accommodate two adult riders?

Yes! The extended double seat is explicitly designed to support a passenger or carry heavy cargo bundles. It is crafted with high-density elastic foam that retains its supportive shape over long-distance rides. Coupled with the bike's high-tensile carbon steel frame, heavy-duty full suspension system, and 440 lbs maximum payload capacity, the M8DM is fully structurally optimized for dual riding.
